Embedding Versus Referencing

Embedding puts the child inside the parent: one document, one seek, one atomic write. Referencing puts the child in its own collection with a field pointing back: independent indexes and writes, and a join on every read that needs both.

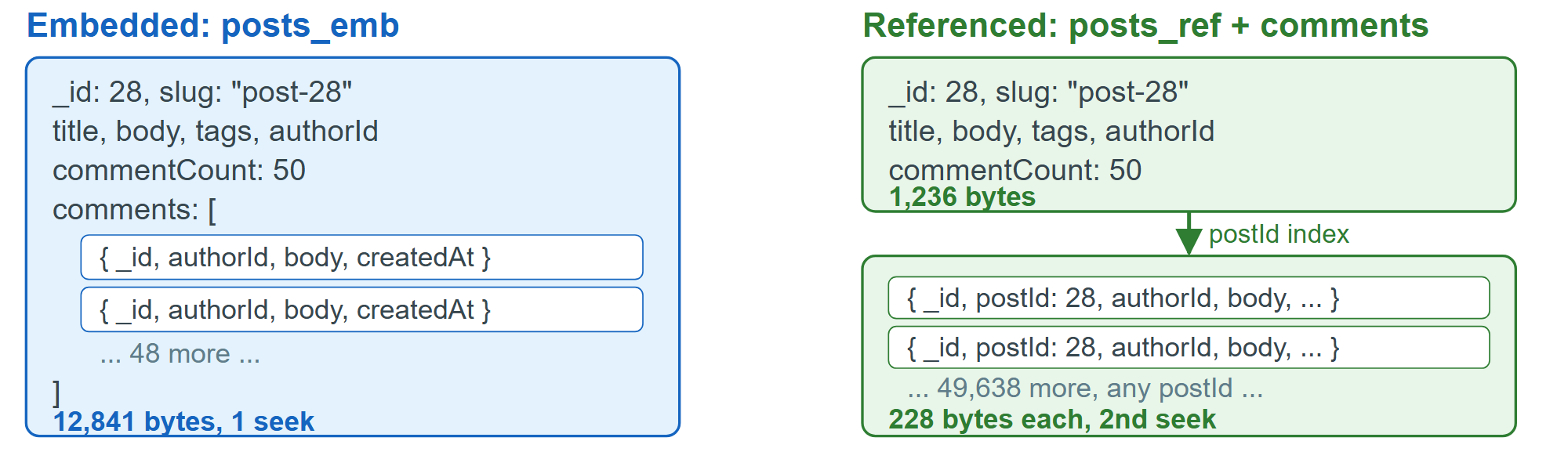

The same post and comments as one document and as two collections

cost, bytes and ex below are reused throughout this section.

The same three questions, asked of both shapesJavaScript

const st = e => e.executionStats || e.stages[0].$cursor.executionStats;
const cost = (label, e) => { const s = st(e); print(label.padEnd(24) + 'keys='
  + s.totalKeysExamined + ' docs=' + s.totalDocsExamined + ' ms=' + s.executionTimeMillis); };
const bytes = c => { let n = 0; c.forEach(d => { n += bsonsize(d); }); return n; };
const ex = q => q.explain('executionStats');
cost('Q1 emb  one findOne', ex(db.posts_emb.find({ slug: 'post-28' })));
cost('Q1 ref  its comments', ex(db.comments.find({ postId: 28 }).sort({ createdAt: -1 })));
cost('Q2 ref  indexed sort', ex(db.comments.find().sort({ createdAt: -1 }).limit(10)));
cost('Q2 emb  unwind + sort', db.posts_emb.explain('executionStats').aggregate([
  { $unwind: '$comments' }, { $sort: { 'comments.createdAt': -1 } }, { $limit: 10 }]));
cost('Q3 emb  multikey index', ex(db.posts_emb.find({ 'comments.authorId': 77 })));
print('Q3 bytes: ref ' + bytes(db.comments.find({ authorId: 77 })) + ', emb '
  + bytes(db.posts_emb.find({ 'comments.authorId': 77 })));

Output

Q1 emb  one findOne     keys=1 docs=1 ms=0
Q1 ref  its comments    keys=50 docs=50 ms=0
Q2 ref  indexed sort    keys=10 docs=10 ms=0
Q2 emb  unwind + sort   keys=0 docs=2000 ms=57
Q3 emb  multikey index  keys=11 docs=11 ms=0
Q3 bytes: ref 2508, emb 106674

Q1, the post page, favors embedding — but not on document counts. Both shapes seek once; the embedded shape then reads 1 document where the referenced shape reads 51 across two queries. On a 1 ms hop that second round trip costs more than the 50 extra reads, and $lookup does not save you: it is still two index seeks server-side.

Q2, the site-wide feed, is where embedding collapses. A createdAt inside an array cannot serve a top-level sort, so the pipeline scans all 2,000 posts, unwinds 49,640 comments and sorts them in memory; keys=0 is the tell. The referenced shape reads 10 off the createdAt index — 200x fewer examined, a gap that widens with the collection.

Q3 is a draw on counters and a rout on bytes. The multikey index locates the 11 matching posts in 11 examined documents, exactly as the authorId index locates the 11 comments — but each embedded match is a whole 7 KB post, so 106,674 bytes cross the wire instead of 2,508. And { 'comments.$': 1 } returns only the first match per document, so someone who commented twice on one post loses a comment.
