Winding Order and Facet Culling

Every triangle has two sides, and WebGL tells them apart by winding order, the direction its vertices run once projected to the screen. By default (frontFace(gl.CCW)) counterclockwise means the front face; from behind, the same vertices run clockwise and show the back:

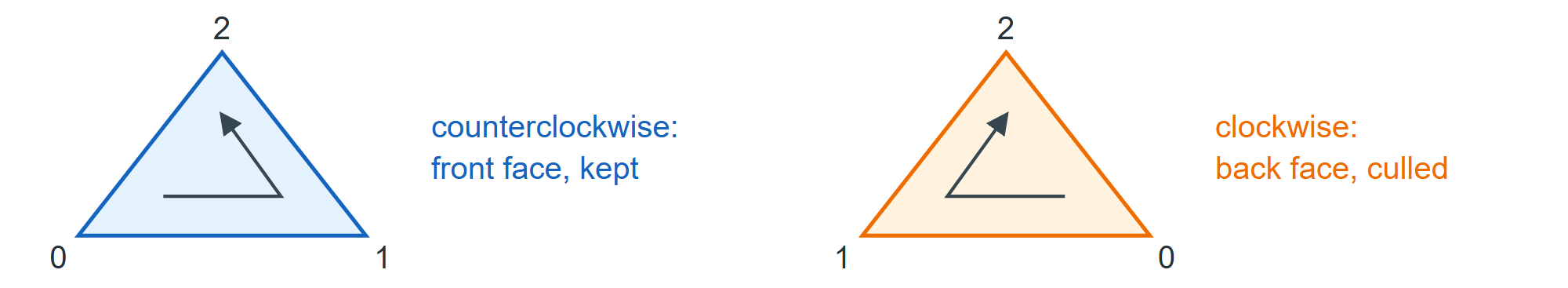

The same triangle seen from the front (counterclockwise) and from behind (clockwise)

Enabling CULL_FACE (off by default) discards triangles by facing before shading; cullFace() picks BACK (the default), FRONT or FRONT_AND_BACK, and frontFace(gl.CW) suits models wound the other way. Points and lines are never culled, and the fragment shader's gl_FrontFacing says which side it is shading (Two-Sided Lighting). Because winding is measured on screen, a negative scale that mirrors a model turns its front faces into back faces; set frontFace(gl.CW) for that draw. GLH.box() winds counterclockwise seen from outside, like glTF.

A spinning cover shows its front (blue) and back (orange) by winding; culling removes one sideHTMLLive
