Image-based lighting (IBL) lights objects with a picture of their surroundings, usually a cube map: the specular part samples it in the reflection direction, blurrier for rougher surfaces, and the diffuse part samples a fully blurred version along the normal. Proper IBL prefilters each level with the GGX lobe; this demo uses the cube map's plain mipmaps, with Karis's ambientBRDF() fit as the split-sum scale and bias. The environment is a small room drawn on six sRGB canvases with a bright window in front. Roughness runs 0.1 to 0.9 across:
<canvas id="c" width="1240" height="400" style="width:620px;height:200px"></canvas>
<script src="https://cdn.jsdelivr.net/npm/gl-matrix@3.4.4/gl-matrix-min.js"></script>
<script src="webgl-helper.js"></script>
<script>
const gl = GLH.context('c'), { mat4, mat3 } = glMatrix;
const { attributes, uniforms: u } = GLH.lit(gl, `#version 300 es
precision highp float;
in vec3 vPosition, vNormal; in vec2 vUV; out vec4 outColor;
uniform samplerCube uEnvironment;
uniform vec3 uAlbedo, uEye, uSun;
uniform float uMetallic, uRoughness;
${GLH.brdf}
void main() {
vec3 n = normalize(vNormal), v = normalize(uEye - vPosition);
vec3 albedo = pow(uAlbedo, vec3(2.2)); // sRGB color -> linear
vec3 color = brdf(n, v, normalize(uSun), albedo, uMetallic, uRoughness) * 3.0;
float mip = uRoughness * 7.0; // blurrier for rougher
vec3 f0 = mix(vec3(0.04), albedo, uMetallic);
color += textureLod(uEnvironment, reflect(-v, n), mip).rgb *
ambientBRDF(f0, uRoughness, max(dot(n, v), 0.0));
color += textureLod(uEnvironment, n, 7.0).rgb * albedo * (1.0 - uMetallic);
color = color / (1.0 + color); // Reinhard tone mapping
outColor = vec4(pow(color, vec3(1.0 / 2.2)), 1.0); // linear -> sRGB
}`);
const sphere = GLH.sphere(24, 32);
const vao = GLH.vao(gl, attributes, sphere.vertices, [['aPosition', 3], ['aNormal', 3],
['aUV', 2]], sphere.indices);
const face = Object.assign(document.createElement('canvas'), { width: 128, height: 128 });
const g = face.getContext('2d'), environment = gl.createTexture();
gl.bindTexture(gl.TEXTURE_CUBE_MAP, environment);
for (let i = 0; i < 6; i++) { // +x -x +y -y +z -z: a room with a bright window
const wall = g.createLinearGradient(0, 0, 0, 128);
wall.addColorStop(0, i === 3 ? '#6b4a2e' : '#dfe9f5'); // floor (-y) or sky
wall.addColorStop(1, i === 2 ? '#dfe9f5' : '#6b4a2e'); // ceiling (+y) or floor
g.fillStyle = wall; g.fillRect(0, 0, 128, 128);
if (i === 4) { g.fillStyle = '#ffffff'; g.fillRect(24, 16, 80, 56); } // the window
gl.texImage2D(gl.TEXTURE_CUBE_MAP_POSITIVE_X + i, 0, gl.SRGB8_ALPHA8, gl.RGBA,
gl.UNSIGNED_BYTE, face);
}
gl.generateMipmap(gl.TEXTURE_CUBE_MAP); // 128 down to 1: levels 0 to 7
gl.texParameteri(gl.TEXTURE_CUBE_MAP, gl.TEXTURE_MIN_FILTER, gl.LINEAR_MIPMAP_LINEAR);
u.uViewProjection(mat4.ortho([], -3.1, 3.1, -1, 1, -2, 2)); // a flat chart, 3.1:1
u.uEye([0, 0, 40]); u.uSun([-0.5, 0.7, 0.8]); u.uAlbedo(GLH.rgb('#e09a10'));
gl.enable(gl.DEPTH_TEST); gl.enable(gl.CULL_FACE);
gl.bindVertexArray(vao);
for (let row = 0; row < 2; row++) {
for (let col = 0; col < 5; col++) {
const model = mat4.fromTranslation([], [(col - 2) * 1.2, 0.5 - row, 0]);
mat4.scale(model, model, [0.47, 0.47, 0.47]);
u.uModel(model); u.uNormalMatrix(mat3.normalFromMat4([], model));
u.uMetallic(row); u.uRoughness(0.1 + col * 0.2); // dielectric row, then metal
gl.drawElements(gl.TRIANGLES, sphere.indices.length, gl.UNSIGNED_SHORT, 0);
}
}
window.__done = true;
</script>

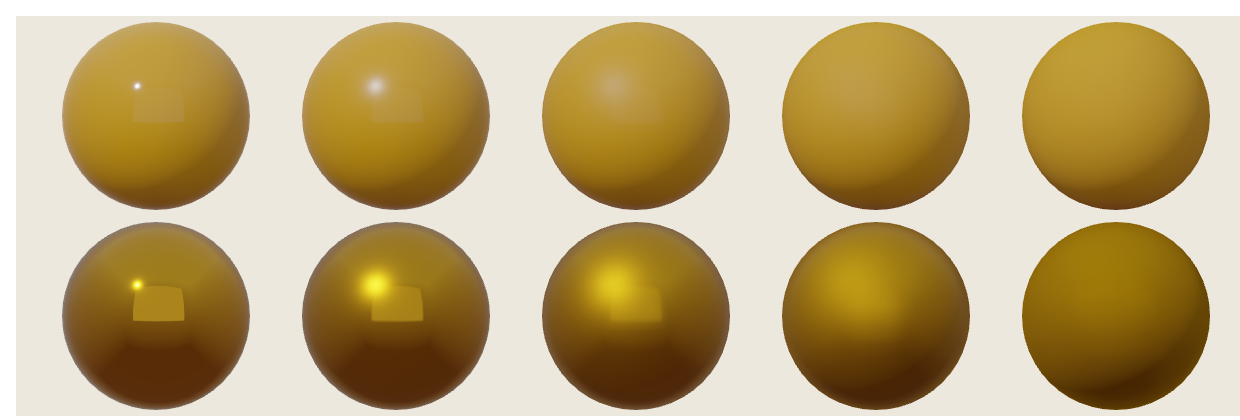

Left to right, the sun's highlight spreads and dims and the window's reflection blurs away. The dielectric row keeps its diffuse yellow under a white highlight; the metal row has no diffuse light, only gold-tinted reflections of the room. Production IBL uses prefiltered HDR environments, such as Poly Haven 82,537 's CC0 HDRIs.
