Per-vertex lighting blends vertex colors across each triangle, which fails whenever lighting changes faster than the mesh: a highlight smaller than a triangle falls between the vertices and vanishes. Per-fragment lighting interpolates position and normal and evaluates the equation per pixel. The listing shares one GLSL function between the stages and lights BookNest's globe bookend (a 12 x 8 sphere) both ways:
<canvas id="c" width="1240" height="340" style="width:620px;height:170px"></canvas>
<script src="https://cdn.jsdelivr.net/npm/gl-matrix@3.4.4/gl-matrix-min.js"></script>
<script src="webgl-helper.js"></script>
<script>
const light = `uniform vec3 uColor, uLight, uEye;
vec3 shade(vec3 p, vec3 n) { // ambient, diffuse and specular
vec3 l = normalize(uLight - p), r = reflect(-l, n), v = normalize(uEye - p);
float fade = 1.0 / (1.0 + 0.2 * dot(uLight - p, uLight - p));
float diffuse = max(dot(n, l), 0.0), specular = pow(max(dot(r, v), 0.0), 30.0);
return uColor * 0.15 + fade * (uColor * diffuse + specular);
}`;
const gl = GLH.context('c'), { attributes, uniforms } = GLH.lit(gl, `#version 300 es
precision highp float; in vec3 vPosition, vNormal, vColor; uniform bool uPerVertex;
out vec4 c; ${light}
void main() { c = vec4(uPerVertex ? vColor : shade(vPosition, normalize(vNormal)), 1.0); }`,
GLH.litVS.replace('out vec2 vUV;', `out vec2 vUV; out vec3 vColor; ${light}`)
.replace('vUV = aUV;', 'vUV = aUV; vColor = shade(vPosition, normalize(vNormal));'));
const { mat4, mat3 } = glMatrix, eye = [0.1, 0.0, 1.7], globe = GLH.sphere(8, 12);
const camera = GLH.shelf(gl, attributes).camera; // the shelf's lookAt and perspective
gl.bindVertexArray(GLH.vao(gl, attributes, globe.vertices,
[['aPosition', 3], ['aNormal', 3], ['aUV', 2]], globe.indices));
const model = mat4.fromTranslation(mat4.create(), [0.1, -0.2, 0]); // the camera's target
uniforms.uModel(mat4.scale(model, model, [0.5, 0.5, 0.5]));
uniforms.uNormalMatrix(mat3.normalFromMat4(mat3.create(), model));
uniforms.uColor(GLH.rgb(GLH.covers[0]));
uniforms.uLight([0.7, 0.5, 0.8]);
uniforms.uEye(eye);
gl.enable(gl.DEPTH_TEST);
GLH.panes(gl, 2, (pane, aspect) => {
uniforms.uViewProjection(camera(aspect, eye));
uniforms.uPerVertex(pane === 0 ? 1 : 0); // bool uniforms take 0 or 1
gl.drawElements(gl.TRIANGLES, globe.indices.length, gl.UNSIGNED_SHORT, 0);
});
window.__done = true;
</script>

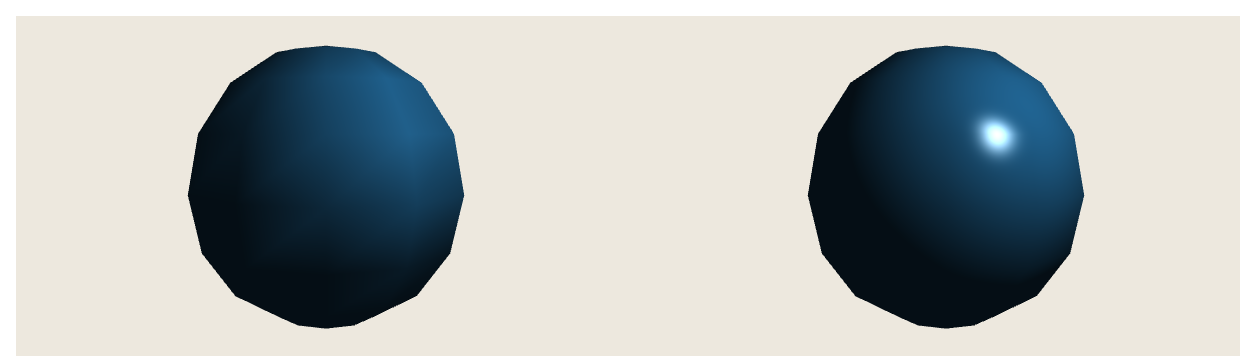

The per-vertex globe has lost its highlight, because no vertex sits where the reflection points at the eye; the per-fragment globe, with the same 96 quads, looks glossy. Both keep the polygonal outline, which no shading hides. Per-fragment lighting costs an evaluation per pixel, the right trade on any recent GPU.
