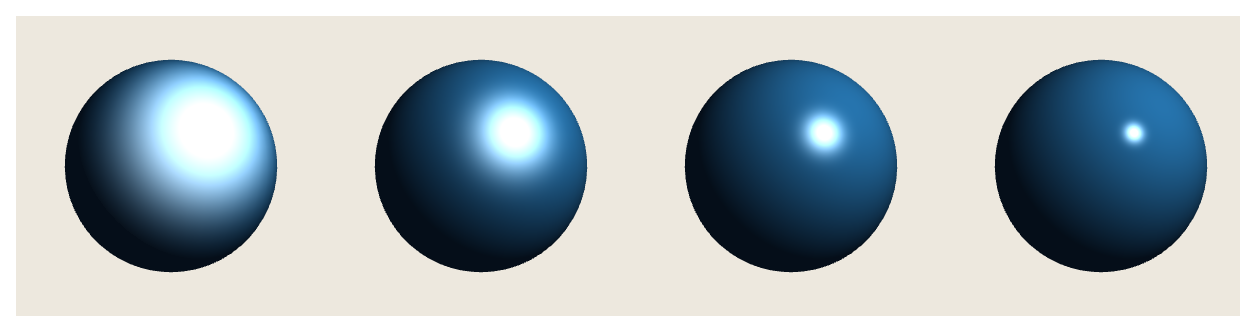

The exponent controls the size of the highlight: low values give broad sheens like satin or skin, high values the tight glints of lacquer and glass. The figure lights BookNest's globe with GLH.shelfFS at four exponents:
<canvas id="c" width="1240" height="300" style="width:620px;height:150px"></canvas>
<script src="https://cdn.jsdelivr.net/npm/gl-matrix@3.4.4/gl-matrix-min.js"></script>
<script src="webgl-helper.js"></script>
<script>
const gl = GLH.context('c'), { attributes, uniforms } = GLH.lit(gl, GLH.shelfFS);
const camera = GLH.shelf(gl, attributes).camera, globe = GLH.sphere(32, 48);
gl.bindVertexArray(GLH.vao(gl, attributes, globe.vertices,
[['aPosition', 3], ['aNormal', 3], ['aUV', 2]], globe.indices));
const { mat4, mat3 } = glMatrix, eye = [0.1, -0.1, 1.6];
const model = mat4.fromTranslation(mat4.create(), [0.1, -0.2, 0]);
uniforms.uModel(mat4.scale(model, model, [0.4, 0.4, 0.4]));
uniforms.uNormalMatrix(mat3.normalFromMat4(mat3.create(), model));
uniforms.uColor(GLH.rgb(GLH.covers[0]));
uniforms.uAmbient([0.15, 0.15, 0.18]);
uniforms.uEye(eye);
uniforms['uLights[0].position']([1.2, 1.0, 1.6]);
uniforms['uLights[0].color']([4, 4, 4]);
uniforms.uGloss(1.0);
uniforms.uAlpha(1.0); // no GLH.shelf().draw() to set it
gl.enable(gl.DEPTH_TEST);
GLH.panes(gl, 4, (pane, aspect) => {
uniforms.uShininess([4, 16, 64, 256][pane]);
uniforms.uViewProjection(camera(aspect, eye));
gl.drawElements(gl.TRIANGLES, globe.indices.length, gl.UNSIGNED_SHORT, 0);
});
window.__done = true;
</script>
Real objects are rarely glossy all over. A specular map is a texture whose value scales the specular term texel by texel, so one draw call can show matte paper and a shiny foil title; Textures loads such textures. GLH.shelfFS fakes one with a procedural mask: step(abs(vUV.y - 0.78), 0.05) is 1 in a band near the top of each face, and uGloss + uFoil * band makes that band glossy. Uniforms default to 0, so set uShininess (pow(x, 0.0) is 1, a glossy wash) and, when drawing without GLH.shelf(), uAlpha.
