Caching and Persistence Levels

Every action recomputes its DataFrame from the source (Transformations Versus Actions). cache() and persist(level) keep the computed partitions on the executors for later actions; both are lazy, and unpersist() frees them.

Caching delivered order lines, and two other storage levelsJavaScript

import time
from pyspark import StorageLevel
def timed(label, df):
    t0 = time.perf_counter()
    df.agg(F.sum("qty"), F.countDistinct("customer_id")).first()
    print(f"{label:<28} {time.perf_counter() - t0:5.2f}s")
delivered = lines.where("status = 'delivered'")
timed("Parquet scan, warm-up", delivered)
timed("Parquet scan", delivered)
delivered.cache()                                 # lazy: marks the plan for caching
timed("first action fills the cache", delivered)
timed("served from the cache", delivered)
orders.persist(StorageLevel.DISK_ONLY).count()    # two more entries for the Storage tab
customers.persist(StorageLevel.MEMORY_ONLY).count()

Output

Parquet scan, warm-up        11.52s
Parquet scan                  2.76s
first action fills the cache  9.03s
served from the cache         1.50s

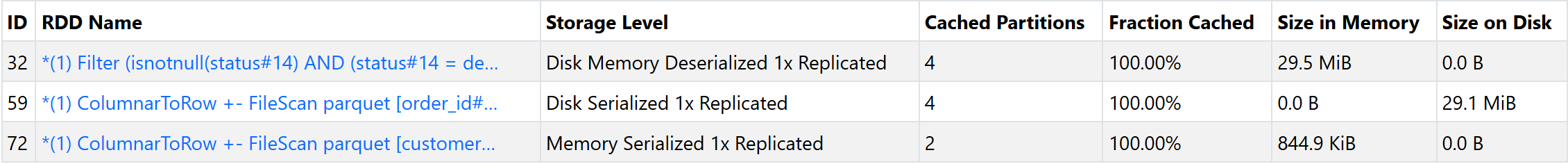

The Storage tab with the three cached DataFrames, their storage levels and sizes

Filling the cache cost three plain scans; later actions ran about twice as fast. The delivered lines took 29.5 MiB of memory, more than the 20 MB Parquet 129 table: the cache keeps Spark 129 's own compressed column batches.
