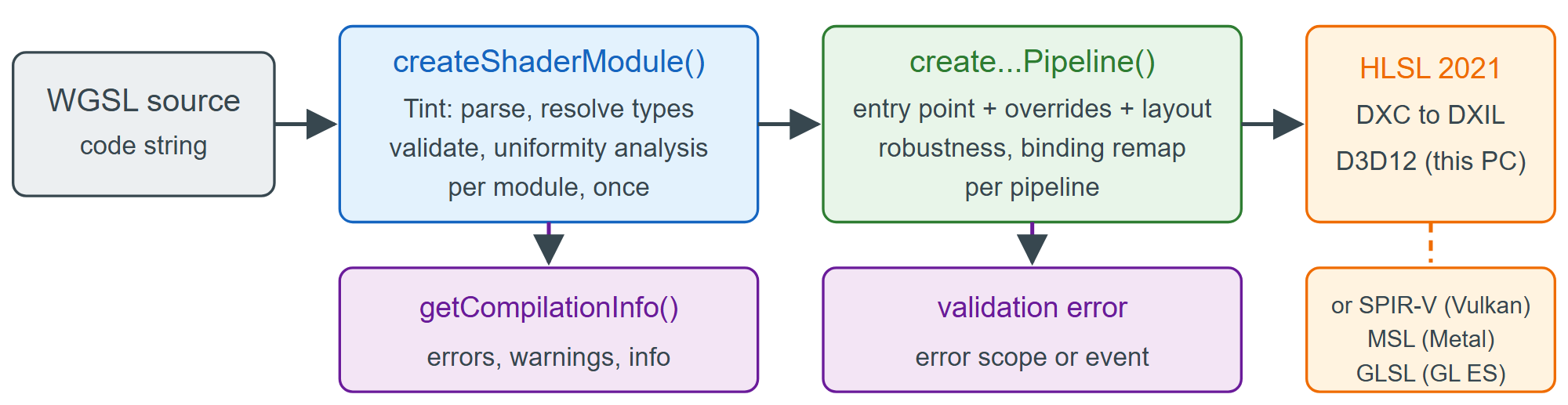

WGSL never reaches the driver. Dawn 1,149 compiles it with Tint in two phases: createShaderModule() parses, resolves types and validates (uniformity included), producing the messages; pipeline creation takes one entry point with its overrides and layout, applies transforms such as bounds robustness, and emits the backend's language. Here chrome://gpu shows the D3D12 backend with the use_dxc and d3d12_use_hlsl_2021 toggles, so HLSL goes through Microsoft's DXC to DXIL for the driver. Firefox 555 's wgpu does the same with Naga (WGSL, SPIR-V or GLSL in; SPIR-V, MSL, HLSL or GLSL out).
Robustness keeps out-of-range indices inside the resource, with loosely specified results: in the WGSL lab, index 6 of a six-element local array returned the last element and a read past a storage buffer returned 0.
