The cover array of Cover Texture Array now gets mipLevelCount: 9 and one call to generateMipmaps(). The same six covers draw twice at about a fifth of their size: the top row through a view of level 0 only, the bottom row through the full chain with mipmapFilter: 'linear'. A 2D canvas magnifies the second cover of each row:
<canvas id="gpu" width="360" height="176"></canvas>
<canvas id="zoom" width="250" height="176"></canvas>
<script src="mipmaps.js"></script>
<script type="module">
const device = await (await navigator.gpu.requestAdapter()).requestDevice();
const bitmaps = await Promise.all([1, 2, 3, 4, 5, 6].map(async (n) =>
createImageBitmap(await (await fetch(`booknest-cover-${n}.png`)).blob())));
const covers = device.createTexture({ size: [256, 384, 6], format: 'rgba8unorm',
mipLevelCount: 9, // floor(log2(384)) + 1
usage: GPUTextureUsage.TEXTURE_BINDING | GPUTextureUsage.COPY_DST |
GPUTextureUsage.RENDER_ATTACHMENT });
bitmaps.forEach((source, layer) => device.queue.copyExternalImageToTexture(
{ source }, { texture: covers, origin: [0, 0, layer] }, [256, 384]));
generateMipmaps(device, covers); // from mipmaps.js (Section 4.13.2)
const code = /* wgsl */ `
struct Out { @builtin(position) pos: vec4f, @location(0) uv: vec2f,
@location(1) @interpolate(flat) layer: u32 }
@vertex fn vs(@builtin(vertex_index) v: u32, @builtin(instance_index) book: u32) -> Out {
let q = array(vec2f(0, 0), vec2f(1, 0), vec2f(0, 1), vec2f(1, 0), vec2f(1, 1),
vec2f(0, 1))[v];
let p = vec2f(-0.95 + f32(book) * 0.32 + q.x * 0.30, q.y * 1.8 - 0.9);
return Out(vec4f(p, 0, 1), vec2f(q.x, 1 - q.y), book);
}
@group(0) @binding(0) var covers: texture_2d_array<f32>;
@group(0) @binding(1) var smp: sampler;
@fragment fn fs(in: Out) -> @location(0) vec4f {
return textureSample(covers, smp, in.uv, in.layer); // picks the level from derivatives
}`;
const context = gpu.getContext('webgpu'), format = navigator.gpu.getPreferredCanvasFormat();
context.configure({ device, format });
const module = device.createShaderModule({ code });
const pipeline = device.createRenderPipeline({ layout: 'auto', vertex: { module },
fragment: { module, targets: [{ format }] } });
const groups = [[{ mipLevelCount: 1 }, {}], [{}, { mipmapFilter: 'linear' }]].map(
([view, mips]) => device.createBindGroup({ layout: pipeline.getBindGroupLayout(0),
entries: [{ binding: 0, resource: covers.createView(view) }, { binding: 1, resource:
device.createSampler({ magFilter: 'linear', minFilter: 'linear', ...mips }) }] }));
const encoder = device.createCommandEncoder();
const pass = encoder.beginRenderPass({ colorAttachments: [{ loadOp: 'clear', storeOp: 'store',
view: context.getCurrentTexture().createView(), clearValue: [0.96, 0.94, 0.90, 1] }] });
pass.setPipeline(pipeline);
groups.forEach((group, row) => { // top row: level 0, bottom: all 9
pass.setBindGroup(0, group), pass.setViewport(0, row * 88, 360, 88, 0, 1), pass.draw(6, 6);
});
pass.end();
device.queue.submit([encoder.finish()]);
const ctx = zoom.getContext('2d'); // same task as the submit
ctx.imageSmoothingEnabled = false; // magnify the second cover 2.2 times
for (const row of [0, 1]) {
ctx.drawImage(gpu, 66, row * 88 + 4, 55, 80, row * 131, 0, 119, 176);
}
await device.queue.onSubmittedWorkDone();
window.__done = true;
</script>

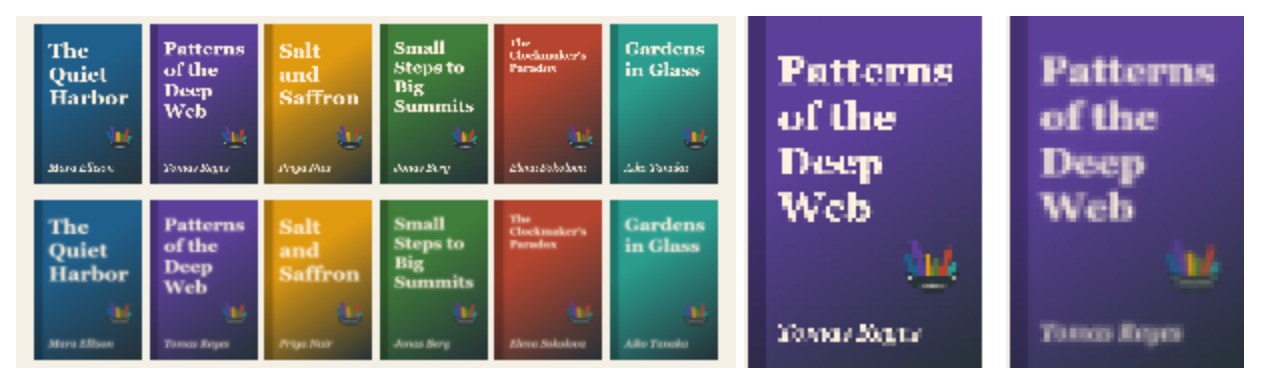

Without mipmaps (top row, left crop) the thin strokes of the titles and author names break into scattered pixels, because each screen pixel samples 4 of the roughly 20 texels under it; with the mip chain (bottom row, right crop) the hardware reads level 2 or 3, whose texels already average the block, so the strokes stay whole, softer but steady when the covers move. The textureSample() call is unchanged: the GPU picks the level from the screen-space derivatives of the texture coordinates.
