Loading Libraries

Loading Libraries

Loading a Library Implicitly or with @Library

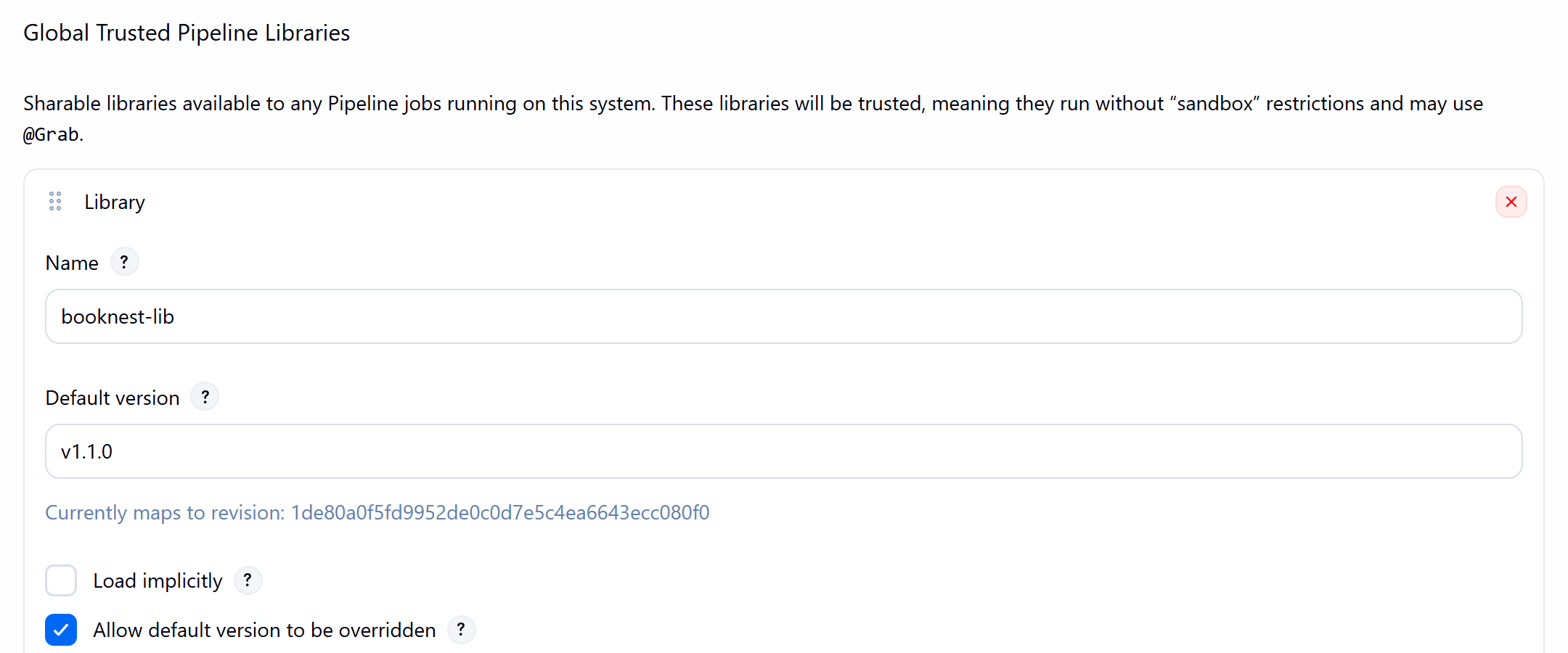

A library is registered under Manage Jenkins 8,793 > System > Global Trusted Pipeline Libraries with a name, a default version and a retrieval method, here Modern SCM with Git 1,932 , the repository URL and the github-booknest credential:

The booknest-lib entry in Global Trusted Pipeline Libraries

The Jenkinsfile asks for it by name and version. The underscore is a placeholder: an annotation must annotate something, and _ avoids a dummy import:

The top of BookNest's Jenkinsfile, and its Inspect stage (excerpt)Groovy

@Library('booknest-lib@v1.1.0') _
...
      steps {
        sh 'echo "Building $BRANCH_NAME at $(git rev-parse --short HEAD)"'
        seedCheck()
        echo "Image tag: ${imageTag()}"
      }

Sam committed it as b731ff1 "Load the booknest-lib shared library in the Jenkinsfile", and a scan built main:

How main's build 3 resolved the libraryShell

curl -s -u "admin:$JENKINS_TOKEN" http://localhost:32080/job/booknest/job/main/3/consoleText \
  | grep -E 'Loading library|Found match|seedCheck:|Image tag|^Finished'

Output

Loading library booknest-lib@v1.1.0
Found match: refs/tags/v1.1.0 revision 1de80a0f5fd9952de0c0d7e5c4ea6643ecc080f0
seedCheck: db/seed.json OK, 6 books
Image tag: main-b731ff1-3
Finished: SUCCESS

The controller resolved the tag with git ls-remote, checked the library out beside the workspace (booknest_main@libs) and compiled it before the pipeline started. Load implicitly gives every pipeline the library at its default version with no annotation: a throwaway job, lib-implicit, logged "Loading library booknest-lib@v1.1.0" and the tag detached-b731ff1-1 (a plain Pipeline job has no BRANCH_NAME). The option was switched off again, because an explicit annotation shows the dependency where readers look. The library step loads a library mid-run, even at a computed version.

Global libraries are trusted: they run outside the Groovy sandbox (Script Approval), so only users with Overall/RunScripts may configure them. Libraries defined on a folder are always untrusted and sandboxed.
