Ambient occlusion darkens creases that ambient light reaches less, the soft shade under a shelf. SSAO2RenderingPipeline estimates it from the depth and normal buffers (filled by the prepass renderer in the color pass): it samples points in a hemisphere around each pixel's normal (samples, 8 by default, within radius), counts those hidden behind the depth buffer, blurs the noise with a bilateral filter and multiplies the result into the frame. Disabling the combine effect shows the raw term:
<canvas id="view" style="width: 620px; height: 150px"></canvas>
<script src="https://cdn.jsdelivr.net/npm/babylonjs@9.28.0/babylon.js"></script>
<script src="bookstore.js"></script>
<script>
{
const engine = new BABYLON.Engine(view, true, {}, true);
const scene = BookNestStore.createScene(engine);
BookNestStore.createRoom(scene);
const left = BookNestStore.createBookcase(scene, 'bookcaseLeft', -1.8);
BookNestStore.coverBooks(scene, BookNestStore.placeBooks(scene, left));
const target = new BABYLON.Vector3(-1.4, 1.2, 2.6);
const camera = new BABYLON.ArcRotateCamera('view', -1.95, 1.35, 1.6, target, scene);
camera.minZ = 0.05;
const ssao = new BABYLON.SSAO2RenderingPipeline('ssao', scene, 0.5, [camera]); // half size
Object.assign(ssao, { radius: 0.5, totalStrength: 2, samples: 16, maxZ: 20 });
scene.postProcessRenderPipelineManager.disableEffectInPipeline('ssao',
ssao.SSAOCombineRenderEffect, camera); // show the term, not the frame
BookNestStore.renderWhenReady(engine, scene, 10);
}
</script>

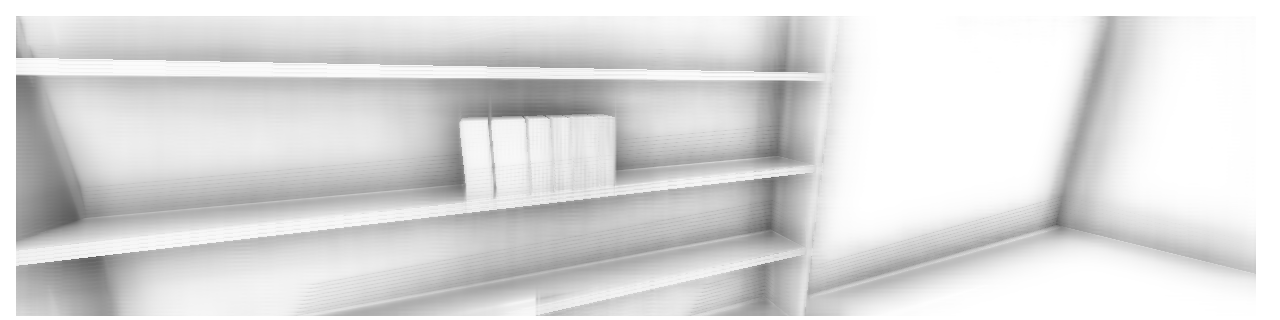

Contact shadows gather under each board, in the inner corners and between the books. The ratio 0.5 halves the resolution, the usual saving; radius is in scene units, so a room in meters wants tenths, not the default
Being screen-space, the effect only knows what the camera sees.
