BookNest's books carry their catalog entry in metadata (Shelves and Walls). Fields listed in a mesh's inspectableCustomProperties (types include String, Slider, Checkbox, Color3 and Button) become editable in a Custom section. This page opens Inspector V2 inline, shrinking the canvas, and a service definition, V2's extension mechanism, selects Salt and Saffron once the panes exist:
<style>body { margin: 0; height: 360px } #view { width: 100%; height: 100% }</style>
<canvas id="view"></canvas>
<script src="https://cdn.jsdelivr.net/npm/babylonjs@9.28.0/babylon.js"></script>
<script src="bookstore.js"></script>
<script>
(async () => {
const engine = new BABYLON.Engine(view, true, {}, true);
const scene = BookNestStore.createScene(engine);
BookNestStore.createRoom(scene);
const books = BookNestStore.placeBooks(scene,
BookNestStore.createBookcase(scene, 'bookcaseLeft', -1.8));
new BABYLON.ArcRotateCamera('browse', -1.75, 1.45, 1.5,
new BABYLON.Vector3(-1.85, 1.35, 2.6), scene).minZ = 0.05;
const slider = BABYLON.InspectableType.Slider;
for (const book of books) { // each book's catalog entry, editable
for (const key of ['price', 'rating']) {
Object.defineProperty(book, key, { configurable: true, // the Inspector wraps it
get: () => book.metadata[key], set: (value) => { book.metadata[key] = value; } });
}
book.inspectableCustomProperties = [
{ label: 'Price', propertyName: 'price', type: slider, min: 0, max: 60, step: 0.01 },
{ label: 'Rating', propertyName: 'rating', type: slider, min: 0, max: 5, step: 0.1 }];
}
for (const file of ['babylonjs-addons@9.28.0/babylonjs.addons.min.js', // in this order
'babylonjs-loaders@9.28.0/babylonjs.loaders.min.js',
'babylonjs-materials@9.28.0/babylonjs.materials.min.js',
'babylonjs-inspector@9.28.0/babylon.inspector-v2.bundle.js']) {
await BABYLON.Tools.LoadScriptAsync(`https://cdn.jsdelivr.net/npm/${file}`);
}
INSPECTOR.ShowInspector(scene, { layoutMode: 'inline', themeMode: 'light',
disableTeachingMoments: true, leftPaneDefaultCollapsed: true,
serviceDefinitions: [{ friendlyName: 'Select a book', // runs once the panes exist
consumes: [INSPECTOR.SelectionServiceIdentity, INSPECTOR.PropertiesServiceIdentity],
factory: (selection, properties) => {
selection.selectedEntity = books[2]; // Salt and Saffron
properties.highlightSections(['Custom']); // collapse the others
} }] });
setTimeout(() => { // the figure: scroll to Custom
[...document.querySelectorAll('span, div')].find((node) => node.textContent === 'Custom')
?.scrollIntoView();
BookNestStore.renderWhenReady(engine, scene, 10);
}, 1000);
})();
</script>

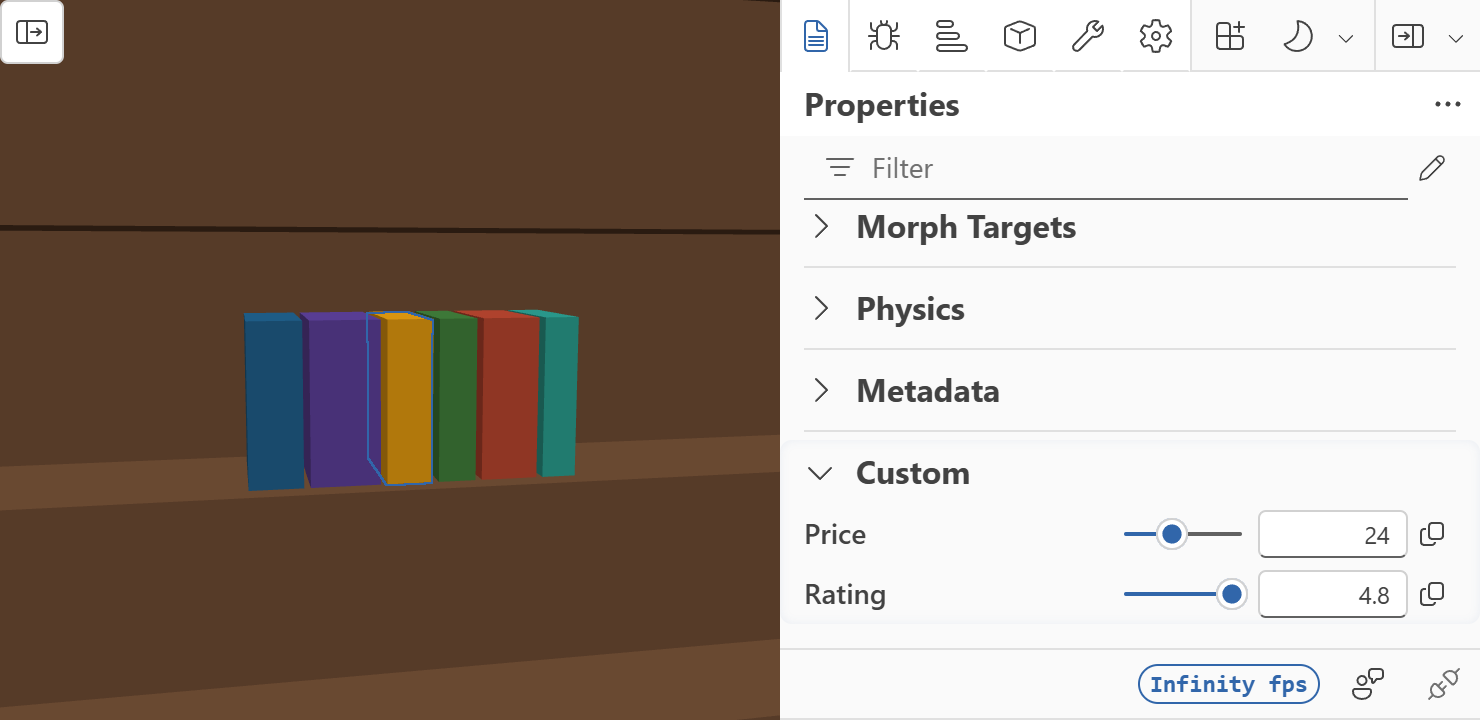

The sliders edit the catalog entry itself through the setters, a quick test of how the details panel (Details Panel) copes with odd values. V2 redefines each shown property to watch it, so without configurable: true the section showed "Property "price" of object ... is not configurable".
For a missing book, read its parent and bounding-box size; for flat covers, check the material's albedo thumbnail; for slow frames, read Statistics (How a Frame Renders). Load the Inspector only in development.
<!doctype html>
<style>
body { margin: 0; background: #f7f3ec; font: 13px system-ui, sans-serif; color: #333; }
canvas { width: 100%; max-width: 600px; height: 330px; display: block; touch-action: none; outline: none; }
</style>
<canvas id="view"></canvas>
<script src="https://cdn.jsdelivr.net/npm/babylonjs@9.28.0/babylon.js"></script>
<script src="https://cdn.jsdelivr.net/npm/babylonjs-gui@9.28.0/babylon.gui.min.js"></script>
<script>
// ---- BookNest's bookstore: the helpers the book keeps in bookstore.js ----
const ROOM = { width: 8, depth: 6, height: 3, wall: 0.15 };
const BOOKS = [
{ id: 1, title: 'The Quiet Harbor', author: 'Mara Ellison', color: '#1f5f8b', pages: 312, price: 14.99, rating: 4.6, inStock: true },
{ id: 2, title: 'Patterns of the Deep Web', author: 'Tomas Reyes', color: '#5b3f99', pages: 428, price: 32.5, rating: 4.4, inStock: true },
{ id: 3, title: 'Salt and Saffron', author: 'Priya Nair', color: '#e09a10', pages: 256, price: 24, rating: 4.8, inStock: false },
{ id: 4, title: 'Small Steps to Big Summits', author: 'Dana Whitfield', color: '#3f7d3a', pages: 198, price: 18.5, rating: 4.3, inStock: true },
{ id: 5, title: "The Clockmaker's Paradox", author: 'Julian Voss', color: '#b5452f', pages: 344, price: 16.75, rating: 4.7, inStock: true },
{ id: 6, title: 'Gardens in Glass', author: 'Lena Hart', color: '#2a9d8f', pages: 176, price: 21.3, rating: 4.5, inStock: true },
];
function createScene(engine) {
const scene = new BABYLON.Scene(engine);
scene.clearColor = BABYLON.Color4.FromHexString('#cfd8dcff');
const sky = new BABYLON.HemisphericLight('sky', new BABYLON.Vector3(0.3, 1, -0.4), scene);
sky.groundColor = new BABYLON.Color3(0.35, 0.32, 0.3);
return scene;
}
function paint(scene, name, hex) { // a matte color
const material = new BABYLON.StandardMaterial(name, scene);
material.diffuseColor = BABYLON.Color3.FromHexString(hex);
material.specularColor = BABYLON.Color3.Black();
return material;
}
function createRoom(scene) { // floor and three walls, front open
const room = new BABYLON.TransformNode('room', scene);
const floor = BABYLON.MeshBuilder.CreateGround('floor', { width: ROOM.width, height: ROOM.depth }, scene);
floor.material = paint(scene, 'oak', '#b08d6a');
floor.parent = room;
const plaster = paint(scene, 'plaster', '#fff3e0');
for (const [name, width, x, z] of [['backWall', 8, 0, 3], ['leftWall', 6, -4, 0], ['rightWall', 6, 4, 0]]) {
const wall = BABYLON.MeshBuilder.CreateBox(name, { width, height: ROOM.height, depth: ROOM.wall }, scene);
wall.position.set(x, ROOM.height / 2, z);
wall.rotation.y = x ? Math.PI / 2 : 0;
wall.material = plaster;
wall.parent = room;
}
return room;
}
function createBookcase(scene, name, x) { // 8 boxes merged into 1 mesh
const [w, h, d, t] = [3, 2.2, 0.35, 0.04];
const parts = [[t, h, d, -w / 2, h / 2, 0], [t, h, d, w / 2, h / 2, 0], [w, h, t, 0, h / 2, d / 2 - t / 2]];
for (let i = 0; i < 5; i++) parts.push([w, t, d, 0, 0.1 + i * 0.5, 0]);
const bookcase = BABYLON.Mesh.MergeMeshes(parts.map(([width, height, depth, px, py, pz]) => {
const part = BABYLON.MeshBuilder.CreateBox('part', { width, height, depth }, scene);
part.position.set(px, py, pz);
return part;
}), true);
bookcase.name = name;
bookcase.material = paint(scene, 'walnut', '#6d4c33');
bookcase.position.set(x, 0, ROOM.depth / 2 - ROOM.wall / 2 - d / 2); // against the back wall
return bookcase;
}
function drawCover(scene, book) { // cover art painted on a canvas
const tex = new BABYLON.DynamicTexture('cover' + book.id, { width: 256, height: 384 }, scene);
const c = tex.getContext();
c.fillStyle = book.color; c.fillRect(0, 0, 256, 384);
c.fillStyle = 'rgba(0,0,0,0.4)'; c.fillRect(0, 0, 18, 384); // the dark left edge
c.strokeStyle = '#fff8e1'; c.lineWidth = 3; c.strokeRect(34, 24, 202, 336);
c.fillStyle = '#fff8e1'; c.textAlign = 'center'; c.font = 'bold 30px Georgia';
const lines = [''];
for (const word of book.title.split(' ')) {
const test = (lines[lines.length - 1] + ' ' + word).trim();
if (c.measureText(test).width > 180) lines.push(word); else lines[lines.length - 1] = test;
}
lines.forEach((line, i) => c.fillText(line, 135, 110 + i * 38));
c.font = '20px Georgia'; c.fillText(book.author, 135, 330);
tex.update();
return tex;
}
function placeBooks(scene, bookcase, shelf = 2) { // six books, spines out, covers on +x
const strip = new BABYLON.Vector4(0, 0, 0.07, 1);
const faceUV = [strip, strip, new BABYLON.Vector4(0, 0, 1, 1), strip, strip, strip];
let x = -0.35; // left end of the row, local to the bookcase
return BOOKS.map((record) => {
const width = record.pages / 4000 + 0.02; // spine thickness from page count
const book = BABYLON.MeshBuilder.CreateBox(`book${record.id}`, { width, height: 0.3, depth: 0.22, faceUV, wrap: true }, scene);
book.parent = bookcase;
book.position.set(x + width / 2, 0.12 + shelf * 0.5 + 0.15, -0.02);
x += width + 0.012;
book.material = new BABYLON.StandardMaterial(record.title, scene);
book.material.diffuseTexture = drawCover(scene, record);
book.material.specularColor = new BABYLON.Color3(0.15, 0.15, 0.15);
book.metadata = record; // the record, for picking
return book;
});
}
// The book cuts the storefront with CSG2 (Manifold WebAssembly); this sandbox cannot download
// the .wasm, so the older pure-JavaScript BABYLON.CSG makes the same cuts here.
function createFrontWall(scene) {
const box = (width, height, depth, x, y) => {
const mesh = BABYLON.MeshBuilder.CreateBox('cut', { width, height, depth }, scene);
mesh.position.set(x, y, -ROOM.depth / 2);
return mesh;
};
const solid = box(ROOM.width, ROOM.height, ROOM.wall, 0, ROOM.height / 2);
const windowHole = box(3.2, 1.6, 1, -1.4, 1.6), doorHole = box(1.1, 2.2, 1, 2.3, 1.1);
const wall = BABYLON.CSG.FromMesh(solid).subtract(BABYLON.CSG.FromMesh(windowHole))
.subtract(BABYLON.CSG.FromMesh(doorHole)).toMesh('frontWall', scene.getMaterialByName('plaster'), scene);
[solid, windowHole, doorHole].forEach((mesh) => mesh.dispose());
return wall;
}
// ---- end of the bookstore helpers ----
/*
The book opens Inspector V2 inline (babylonjs-inspector@9.28.0 plus the addons, loaders and
materials scripts) and selects Salt and Saffron. Those bundles are large and need browser
storage this sandbox lacks, so the page draws the same Custom section itself from the very
inspectableCustomProperties the Inspector reads.
*/
const canvas = document.getElementById('view');
const engine = new BABYLON.Engine(canvas, true, {}, true);
const scene = createScene(engine);
createRoom(scene);
const books = placeBooks(scene, createBookcase(scene, 'bookcaseLeft', -1.8));
const camera = new BABYLON.ArcRotateCamera('browse', -1.72, 1.45, 1.7, new BABYLON.Vector3(-1.55, 1.35, 2.6), scene);
camera.minZ = 0.05;
camera.attachControl(canvas, true);
const slider = BABYLON.InspectableType.Slider;
for (const book of books) { // each book's catalog entry, editable
for (const key of ['price', 'rating']) {
Object.defineProperty(book, key, { configurable: true, // the Inspector wraps it
get: () => book.metadata[key], set: (value) => { book.metadata[key] = value; } });
}
book.inspectableCustomProperties = [
{ label: 'Price', propertyName: 'price', type: slider, min: 0, max: 60, step: 0.01 },
{ label: 'Rating', propertyName: 'rating', type: slider, min: 0, max: 5, step: 0.1 }];
}
const GUI = BABYLON.GUI;
const ui = GUI.AdvancedDynamicTexture.CreateFullscreenUI('ui', true, scene);
ui.idealWidth = 600;
const pane = Object.assign(new GUI.Rectangle('pane'), { width: '220px', height: '170px', left: '-10px', top: '10px',
background: 'rgba(255,255,255,0.95)', cornerRadius: 6, color: '#c9bfae', horizontalAlignment: 1, verticalAlignment: 0 });
ui.addControl(pane);
const stack = Object.assign(new GUI.StackPanel(), { verticalAlignment: 0, paddingTop: '6px' });
pane.addControl(stack);
const tag = Object.assign(new GUI.TextBlock('tag', ''), { color: '#222', fontSize: 13, resizeToFit: true,
outlineWidth: 3, outlineColor: 'white' });
ui.addControl(tag);
const highlight = new BABYLON.HighlightLayer('selected', scene);
function inspect(book) { // build the Custom section from the list
highlight.removeAllMeshes();
highlight.addMesh(book, BABYLON.Color3.FromHexString('#ffe082'));
stack.clearControls();
stack.addControl(Object.assign(new GUI.TextBlock('', `${book.name}: Custom`), { height: '22px', fontSize: 13, color: '#1f5f8b' }));
const refresh = () => { tag.text = `$${book.price.toFixed(2)} ★ ${book.rating.toFixed(1)}`; };
for (const { label, propertyName, min, max, step } of book.inspectableCustomProperties) {
const text = Object.assign(new GUI.TextBlock('', ''), { height: '20px', fontSize: 12, color: '#333', textHorizontalAlignment: 0, paddingLeft: '10px' });
const control = Object.assign(new GUI.Slider(), { minimum: min, maximum: max, step, value: book[propertyName],
height: '20px', width: '190px', color: '#1f5f8b', background: '#e6ddd0', thumbColor: '#b5452f' });
const show = () => { text.text = `${label}: ${book[propertyName]}`; refresh(); };
control.onValueChangedObservable.add((value) => { book[propertyName] = +value.toFixed(2); show(); }); // through the setter
stack.addControl(text);
stack.addControl(control);
show();
}
tag.linkWithMesh(book);
tag.linkOffsetY = -70;
}
scene.onPointerObservable.add(({ type, pickInfo }) => {
if (type === BABYLON.PointerEventTypes.POINTERTAP && books.includes(pickInfo?.pickedMesh)) inspect(pickInfo.pickedMesh);
});
inspect(books[2]); // Salt and Saffron
engine.runRenderLoop(() => scene.render());
addEventListener('resize', () => engine.resize());
</script>
